Dashboard Designer

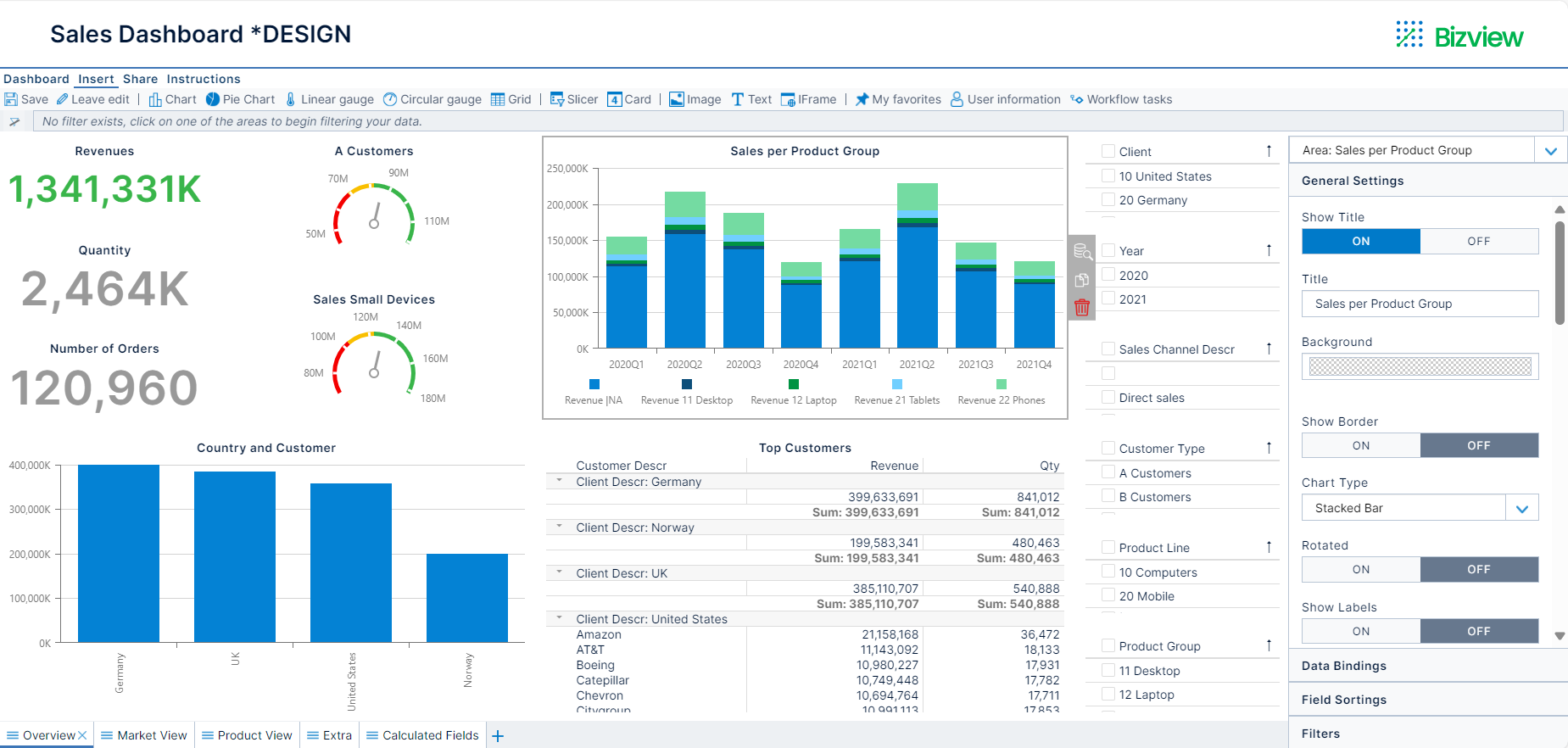

Using the dashboard design module in Bizview gives the ability to create dashboards that can be used across clients, organizations, users, and roles. Once a dashboard is created, all users, depending on access permissions, can view that dashboard. A specific area on the dashboard can be referred to as a dasharea. A dashboard can be designed to contain just one dasharea, or many different dashareas, including individual styles and data information. It is the dashareas that are actually designed, and it is in the design of these that designers can choose what data to be presented, how to present it, and what filters to apply to them.

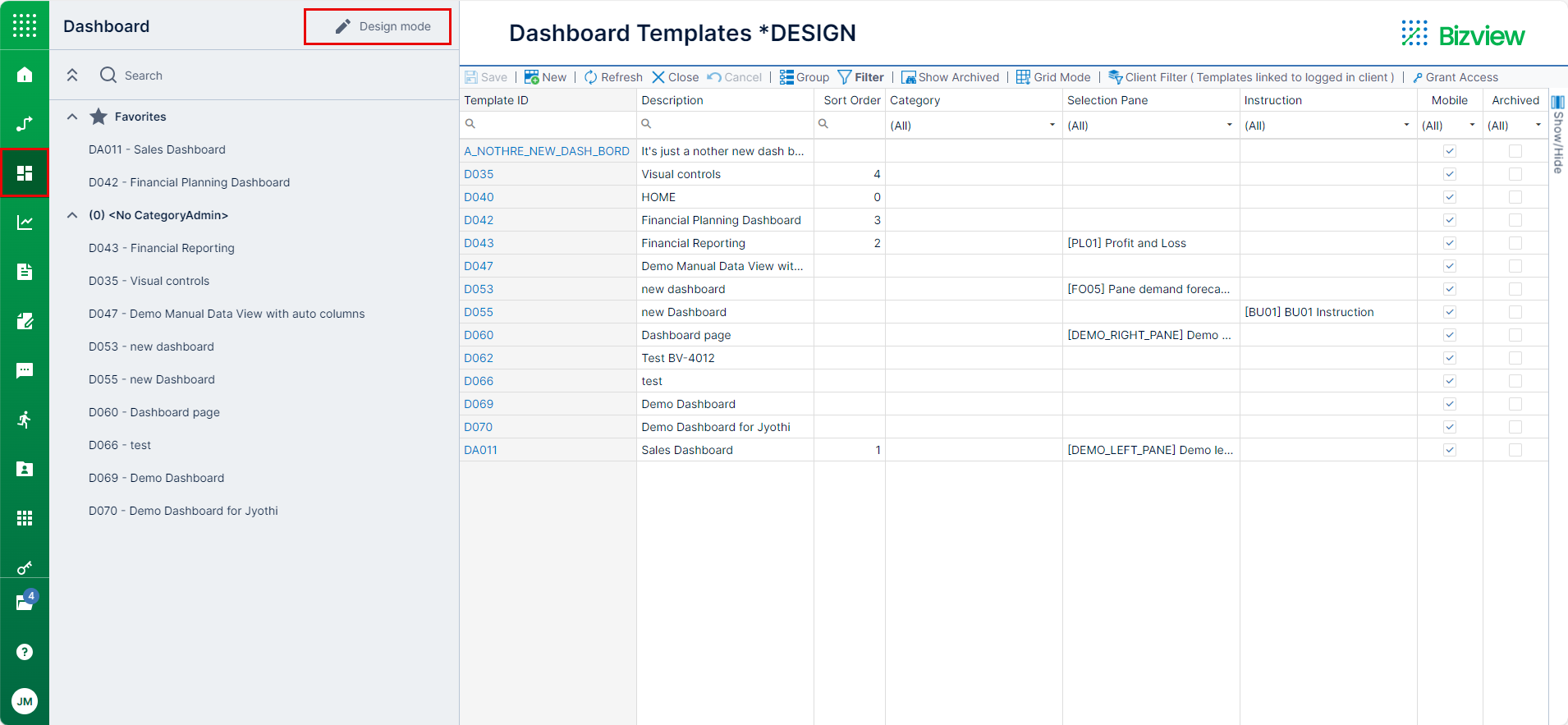

Access this feature by selecting Dashboards > Design mode.
To create a new Dashboard, select the New button in the ribbon.

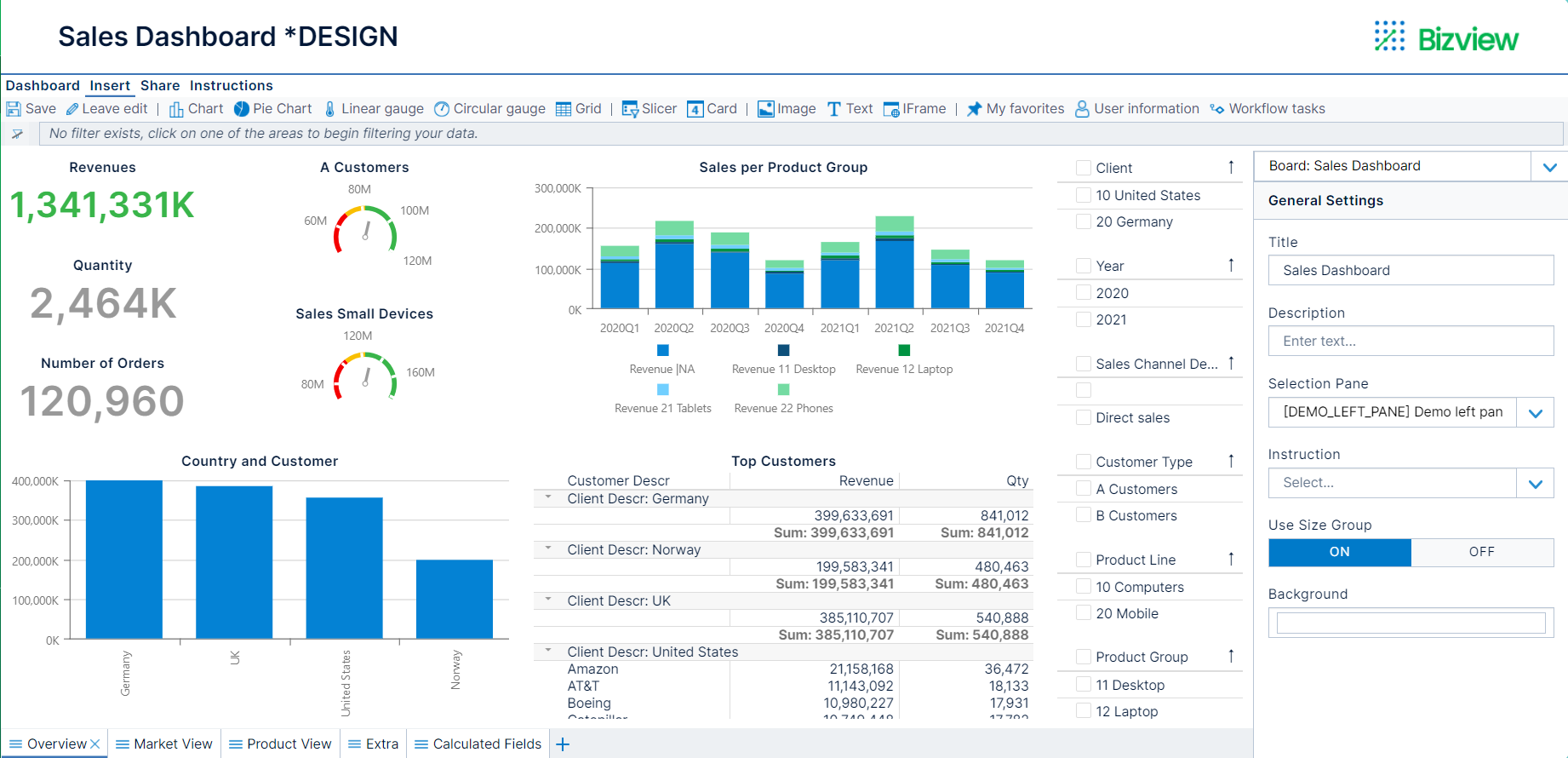

An empty Dashboard area opens and you are free to start designing.
To edit an existing Dashboard, select the required dashboard from the grid.

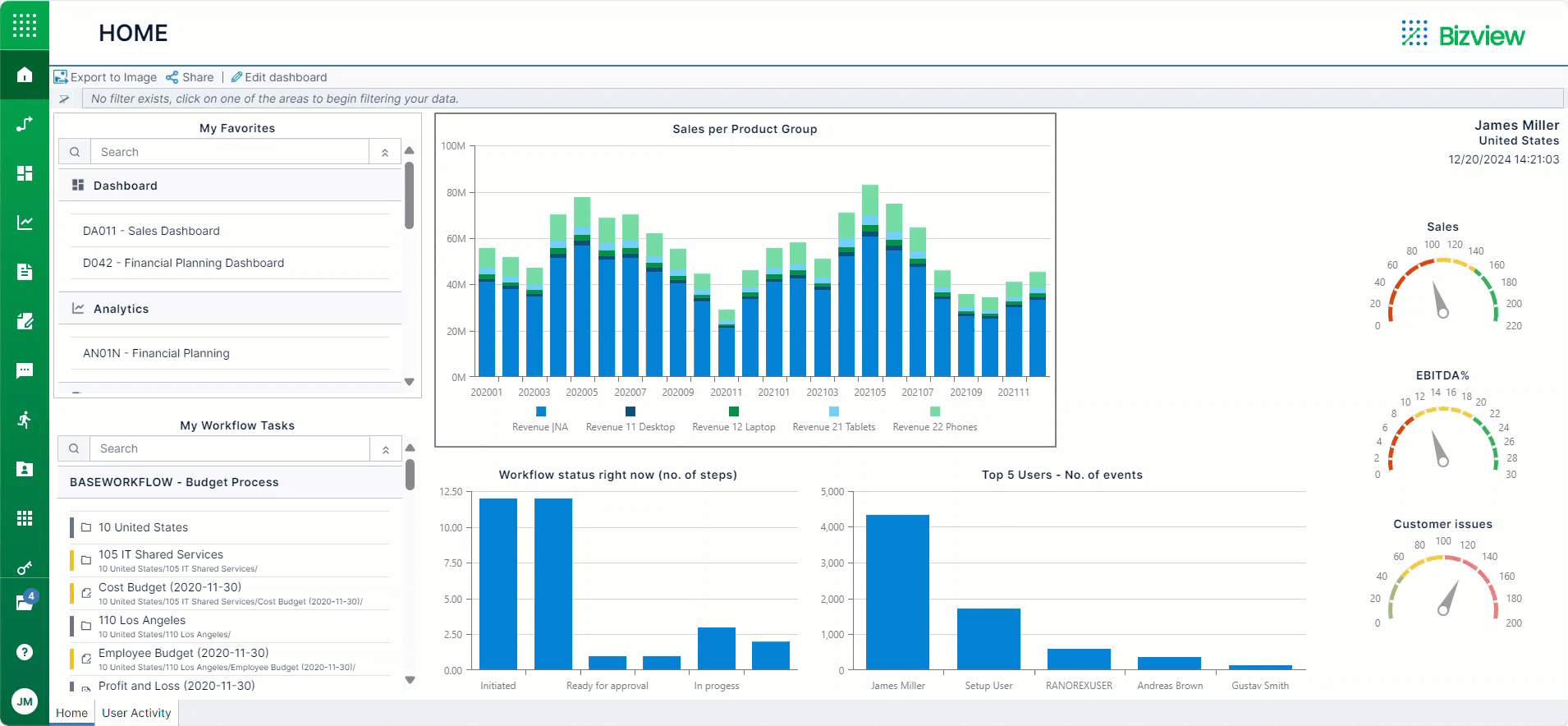

Or you can alternatively select Edit Dashboard from the dashboard home page.
Below is a list of Dashboard attributes and functions:
| Attribute | Function |
|---|---|
Title |
Sets the dashboard title. |
Description |
Sets the description of the tab. |
Selection Pane |
Select among Panes (Pane Designer). The pane selected in this list will be visible to the left in the Dashboard. |
Instruction |
Instructions can be linked to the Dashboard, making them accessible under the instructions tab in the published dashboard. |
Use Size Group |
Used for setting equal size for all pie charts in the given dashboard. If one pie chart is shrinking in size, then all other pie charts will shrink to the same size. |
| Background | Select the background color. |
