COLTYPE

      Mandatory in column A=mandatory in Column A

Parameter

Mandatory/Optional

Value (example)

Comment

FORMS

REPORT

COLTYPE

Mandatory in Column A

Mandatory in Column A

DESIGN or

<VIEWTAG>

Tag each column with different COLTYPEs so that the program knows how to handle the columns when generating the document. The value 'DESIGN' is mandatory; however, the VIEWTAGs are optional.

COLTYPE is a mandatory parameter in column A that is used to tag columns in the template so that the program knows how to handle them. The corresponding keyword to tag rows in row 1 is ROWTYPE. The template columns and rows can be tagged so that they are always hidden from the end-user. Additionally, other columns and rows can be tagged so they are automatically hidden, or visible, when the end-user generates the document and thereafter, the end-user can view/hide these by using the ribbon.

COLTYPE Value

Comment

Mandatory

DESIGN

All columns that belong to the design template area. When the end-user generates the document, all columns with DESIGN as COLTYPE will be hidden.

Yes

<VIEWTAG>

All other columns (except the DESIGN columns) can be tagged with VIEWTAGS to automatically hide/show rows and columns in the document. A default state can be set, and thereafter, the end-user can hide/show tagged rows and columns by using the check boxes in the ribbon. The tag ID specified in the VIEWTAG parameter should be entered in the COLTYPE row.

No

VALIDATECOLUMN

Available from Bizview 7.2

Possibility to add columns in the template that the designer can evaluate other cells and stop the update of values to the database if any value exists in this column. The error messages are shown for the end-user in a separate error sheet.

No

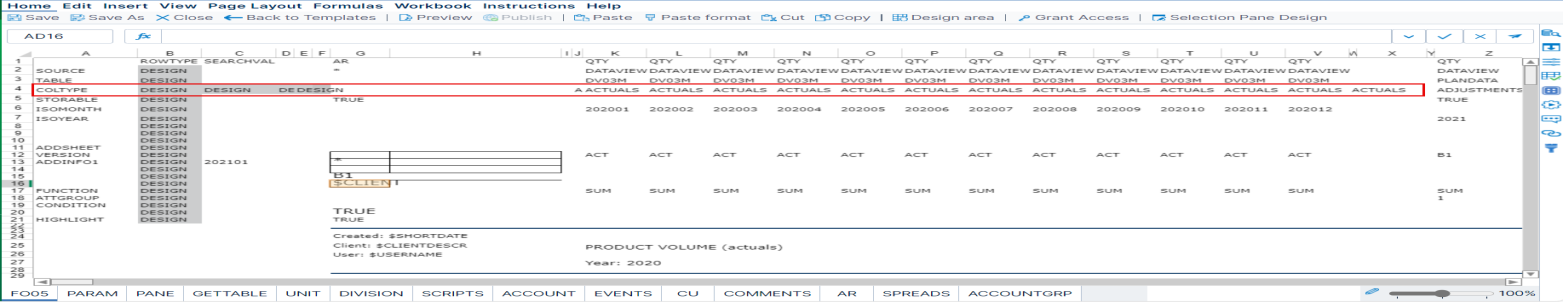

In the template worksheet, the COLTYPE row should be defined with ROWTYPE = DESIGN (the row will be hidden when document is generated).

COLTYPE

The columns defined with COLTYPE = DESIGN will be hidden when end-users generate the document.

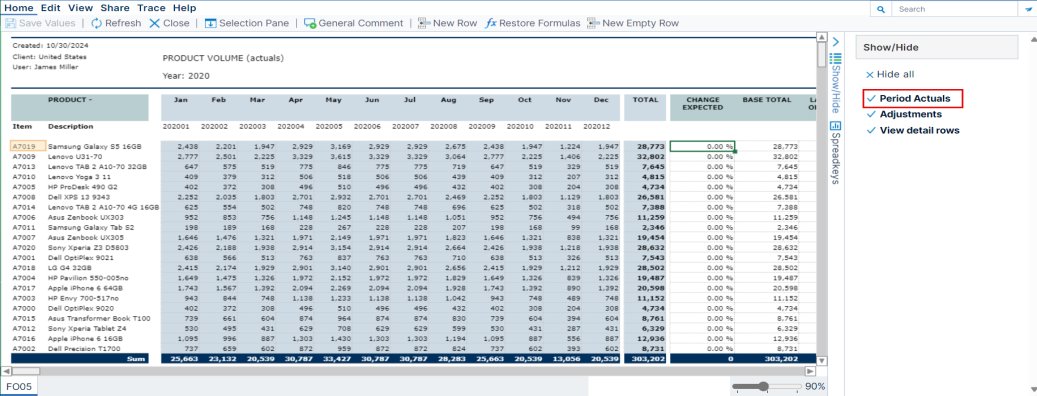

The columns specified as ACTUALS (ACTUALS is specified as a tag ID in the VIEWTAG parameter in the PARAM sheet) will be hidden/shown when the end-user marks the check box in the ribbon:

COLTYPE_2

Published:

COLTYPE

      Mandatory in column A=mandatory in Column A

Parameter

Mandatory/Optional

Value (example)

Comment

FORMS

REPORT

COLTYPE

Mandatory in Column A

Mandatory in Column A

DESIGN or

<VIEWTAG>

Tag each column with different COLTYPEs so that the program knows how to handle the columns when generating the document. The value 'DESIGN' is mandatory; however, the VIEWTAGs are optional.

COLTYPE is a mandatory parameter in column A that is used to tag columns in the template so that the program knows how to handle them. The corresponding keyword to tag rows in row 1 is ROWTYPE. The template columns and rows can be tagged so that they are always hidden from the end-user. Additionally, other columns and rows can be tagged so they are automatically hidden, or visible, when the end-user generates the document and thereafter, the end-user can view/hide these by using the ribbon.

COLTYPE Value

Comment

Mandatory

DESIGN

All columns that belong to the design template area. When the end-user generates the document, all columns with DESIGN as COLTYPE will be hidden.

Yes

<VIEWTAG>

All other columns (except the DESIGN columns) can be tagged with VIEWTAGS to automatically hide/show rows and columns in the document. A default state can be set, and thereafter, the end-user can hide/show tagged rows and columns by using the check boxes in the ribbon. The tag ID specified in the VIEWTAG parameter should be entered in the COLTYPE row.

No

VALIDATECOLUMN

Available from Bizview 7.2

Possibility to add columns in the template that the designer can evaluate other cells and stop the update of values to the database if any value exists in this column. The error messages are shown for the end-user in a separate error sheet.

No

In the template worksheet, the COLTYPE row should be defined with ROWTYPE = DESIGN (the row will be hidden when document is generated).

COLTYPE

The columns defined with COLTYPE = DESIGN will be hidden when end-users generate the document.

The columns specified as ACTUALS (ACTUALS is specified as a tag ID in the VIEWTAG parameter in the PARAM sheet) will be hidden/shown when the end-user marks the check box in the ribbon:

COLTYPE_2
