General Settings - Chart

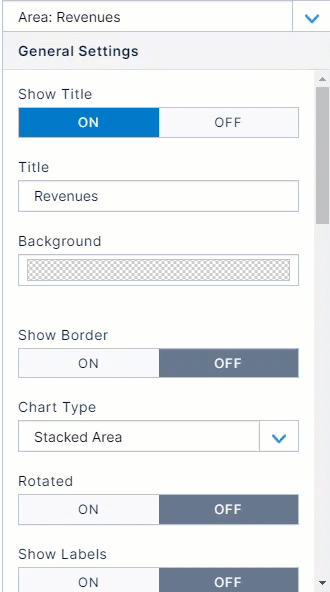

To alter the way the chart looks, access General Settings in the right panel.
The following settings are available for a chart:
Setting | Description |
---|---|
Show Title | Displays the title above the dasharea (ON/OFF). |
Title | The title of the dasharea. |
Background | Choose a background color for the area. |
Show Border | Displays a border around the area (ON/OFF). |
Chart Type | Select chart type. |
Rotated | Rotate the chart (ON/OFF). |
Show Labels | Displays chart labels (ON/OFF). |
Legends Position | Select the position of the legend. |
Legend Location | Select the legend's location. |
Legend Columns | Select the number of columns the legend should be divided into (1-10). |
Legend Border | Displays a border around the legend (ON/OFF). |
Show Tooltip | Displays a tooltip (ON/OFF). |
Palette | Choose the color palette of the chart. |
Show Points | Display chart points (ON/OFF). |
Argument Text Rotation | Rotates the argument text. |
Argument Axis Grid | Displays a grid on the argument axis. |
Argument Axis Description | Enter a description for the argument axis. |
Value Axis Position | Choose the position of the value axis. |
Value Axis Description | Enter a description for the value axis. |
Value Axis Precision | Precision of the value axis (0-10). |
Note: Many of the ON/OFF settings displays even more settings if turned to ON.
