Dashboard Design

Dashboard Design lets you create a variety of useful, informative, and good-looking graphical representations of any data that you wish. Bizview Dashboards enable organisations to visualize key performance indicators and trends with stunning graphics. Easily create attractive dashboards visualizing your defined strategic and tactical goals. Only your imagination sets the limits.

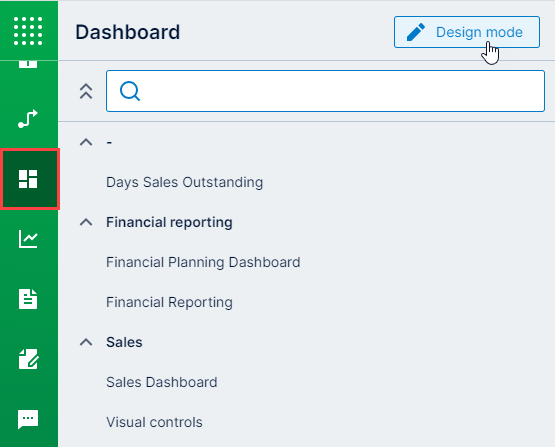

If you are connected to the Bizview role, BV30, you can add new dashboards or edit the existing dashboards by selecting the Dashboard icon from the menu and Design mode:

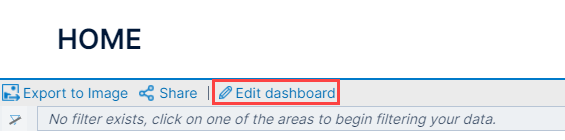

Another way to access edit mode is to click on the Edit dashboard button in the ribbon after opening a dashboard in view mode.

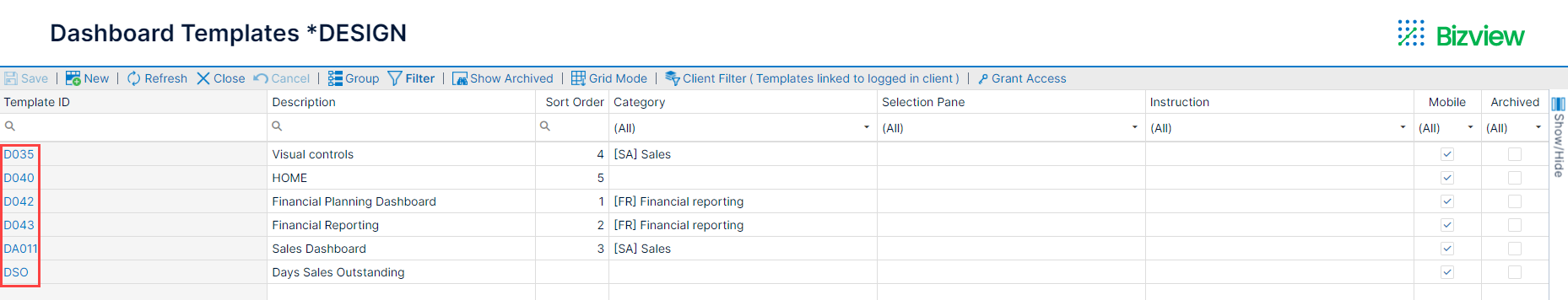

The Dashboard Templates page displays, as shown below. Select a Template ID to open and edit that particular dashboard:

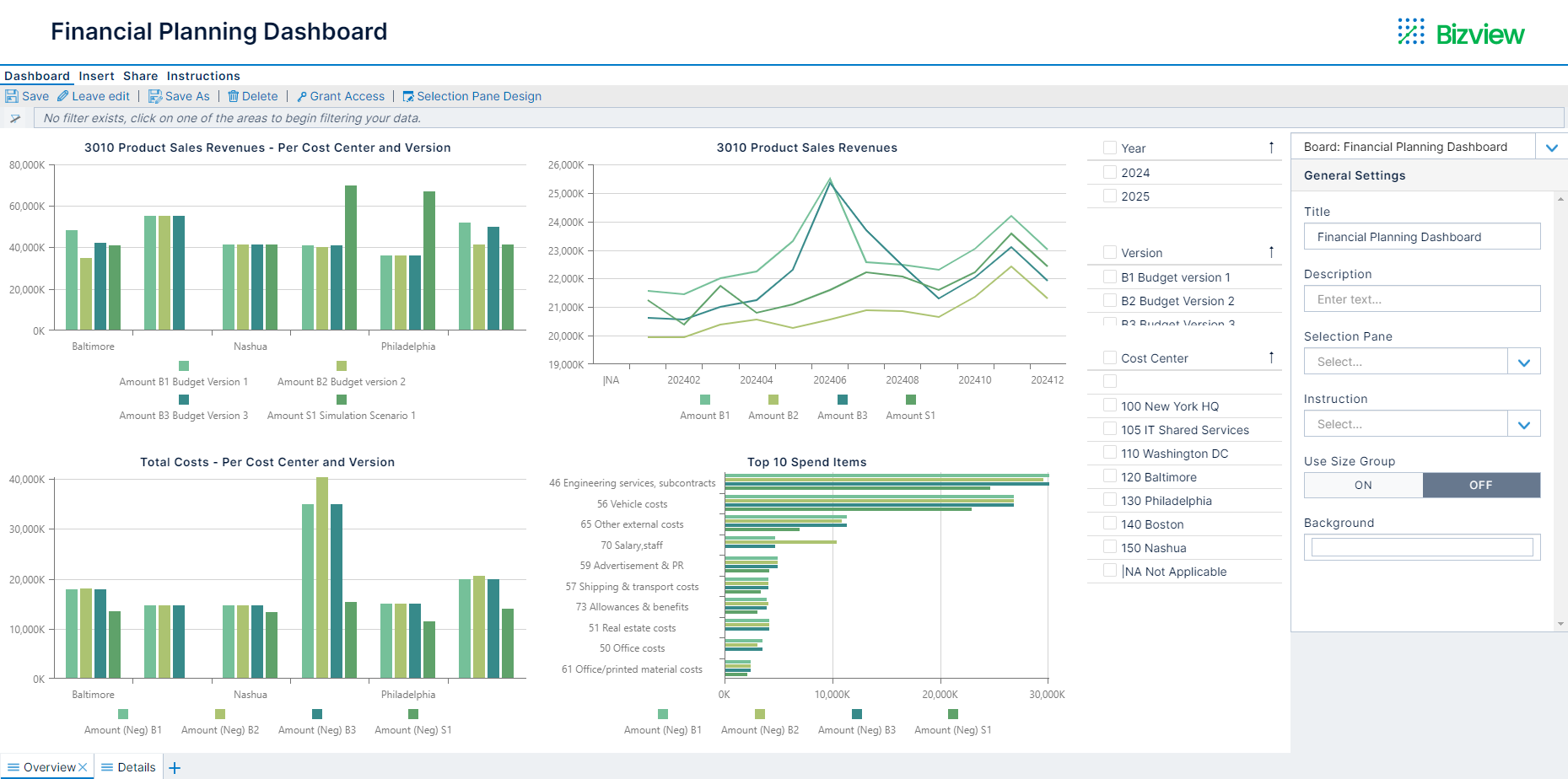

The Dashboard displays, as shown below. Make any necessary edits and select Save.

Or, select Leave edit to exit edit mode.

Important: Dashboard Design is only available for a particular Bizview role and can only be used in desktop version, it is not possible to design dashboards on a mobile device or tablet.

This section contains of the following topics:

• Ribbon

• Right Panel

• Creating a Dashboard

  • Inserting a Dasharea

  • Copying a Dasharea

  • Deleting a Dasharea

• Dashboard Settings

• Tab Settings

• Dasharea Settings

  • Chart

  • Pie Chart

  • Linear Gauge

  • Circular Gauge

  • Grid

  • Image

  • Text

  • Iframe

  • My Favorites

  • User Information

  • My Workflow Tasks

• Field Sortings

• Filters

• Trace

• Homepage Dashboard
